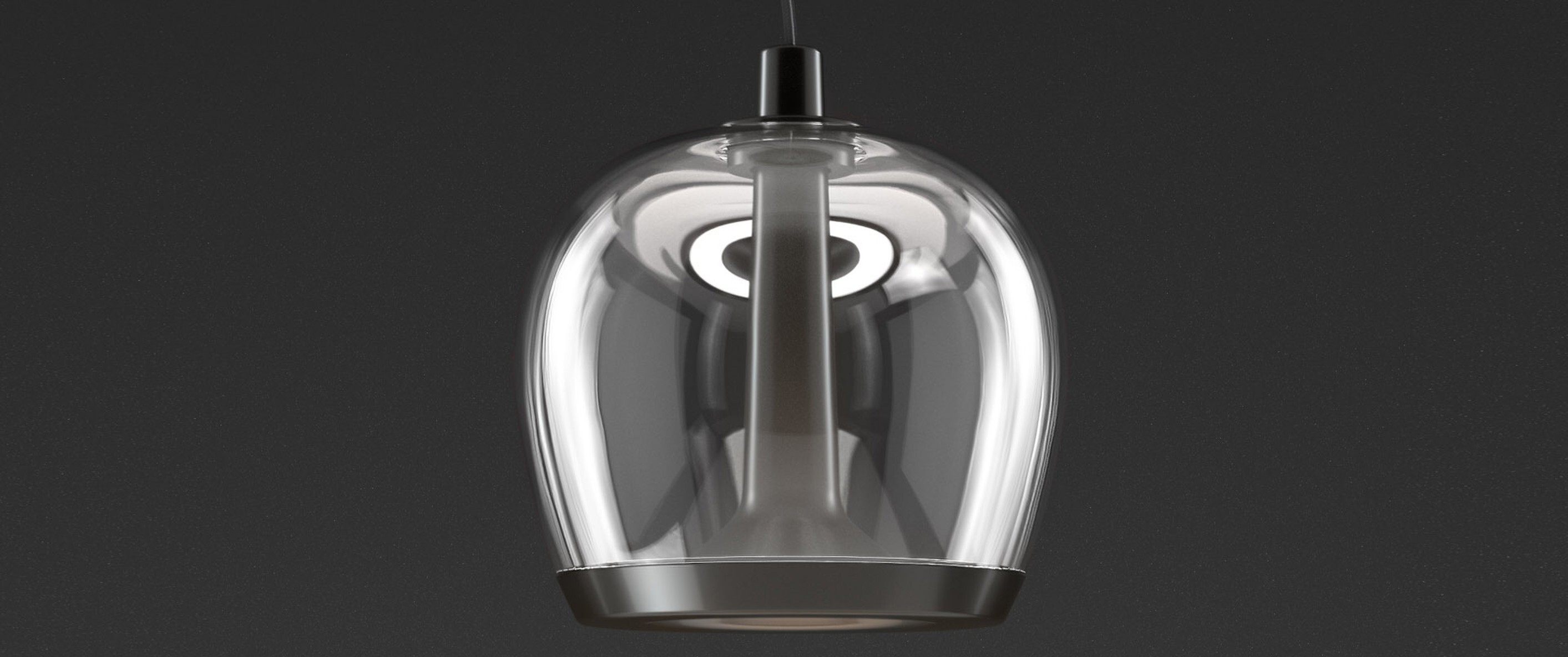

AURELIA S22 BOLD
/
/
AURELIA S22 BOLD

Pendant
AURELIA S22 BOLD

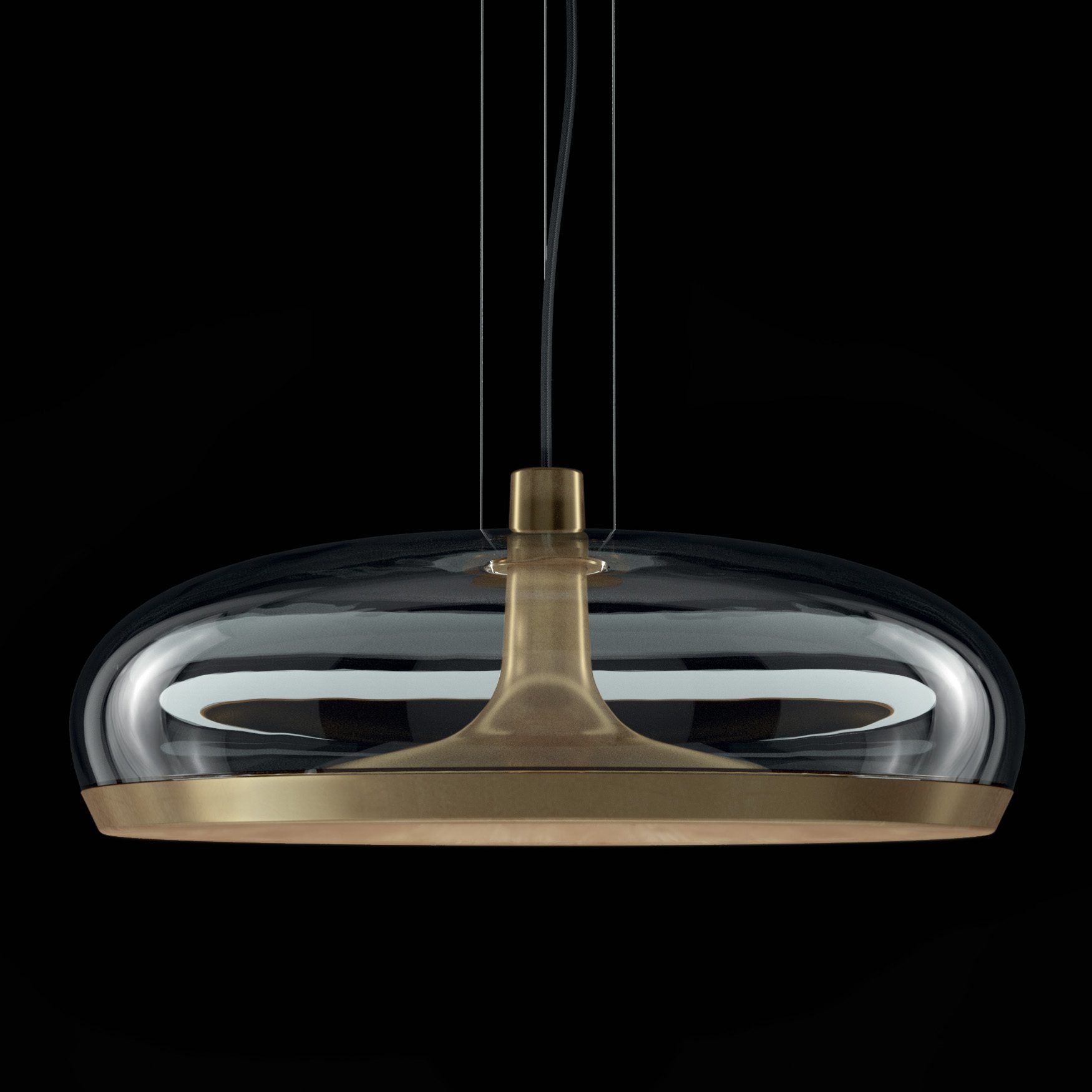

Aurelia is a collection of suspension lamps designed by Patrick Jouin. The handblown glass diffuser surrounds the metal structure that houses two direct and indirect LED light sources. Independently dimmable, the two light sources offer the possibility of single or simultaneous switching, creating direct soft light and surprising and unexpected indirect reflections. Aurelia is available in two different shapes and sizes (Aurelia S 45 and Aurelia Bold S 22) and six combinations of glass colors (transparent or smoke gray) and metal structure (hand-finished vintage brass or matt gunmetal, and glossy warm white) with matching canopy. The LED light source can be easily replaced by the user. A smart disassembly system allows for an easy maintenance and cleaning of the glass diffuser.

Technical information

5 Photos
Gallery

Designer
PATRICK JOUIN

It’s no fluke that Patrick Jouin was born on June 5, 1967 in Nantes, a city with the motto, “May Neptune favour those who sail.” After graduating from the École Nationale de la Création Industrielle (ENSCI) in 1992, the designer founded his own agency in 1998 in the 11th arrondissement in Paris. Since then it has grown into a reference on the international stage. Patrick Jouin stands out through his refined and sometimes bold designs, mentally joining the mortises and tenons of his productions as elegantly and skilfully as he organises their material layout.Patrick Jouin’s designs have never been about making a statement: they are not allegorical and do not herald a new era embodied in objects or a space.

Leucos - Aurelia S 22 (User  Replaceable Led)

Technical information

Category: Indoor

Light source: LED 3000K, LED 2700K

Direct: LED 1 x 11,6W 1531lm (nominal) 3000K CRI≥90
Indirect: LED 1 x 7,2W 784lm (nominal) 3000K CRI≥90

Direct: LED 1 x 11,6W 1471lm (nominal) 2700K CRI≥90
Indirect: LED 1 x 7,2W 768lm (nominal) 2700K CRI≥90

Dimmer: Push-dim, 0/10V; Phase-cut

Materials: glass, metal

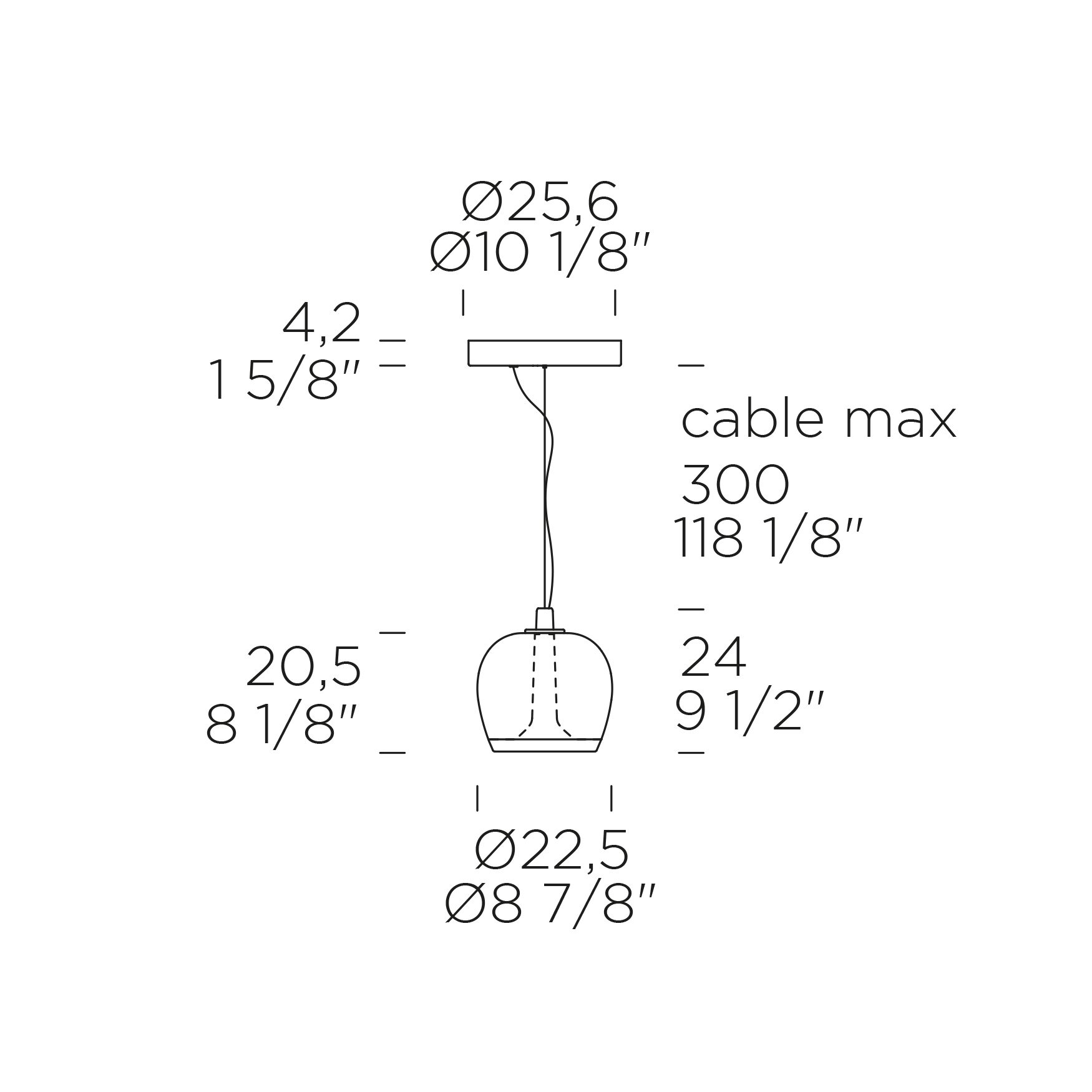

Weight – volume:  12.3lbs – 0.18ft3

Marks:

Note: User Replaceable LED

Download

Technical information
Installation manual
3D
IES files
Full download
Diffuser: Smoke grey
Structure: Glossy warm white

Code Source Dimmer Watt Lm (nominal)
0011501 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011513 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012059 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012065 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

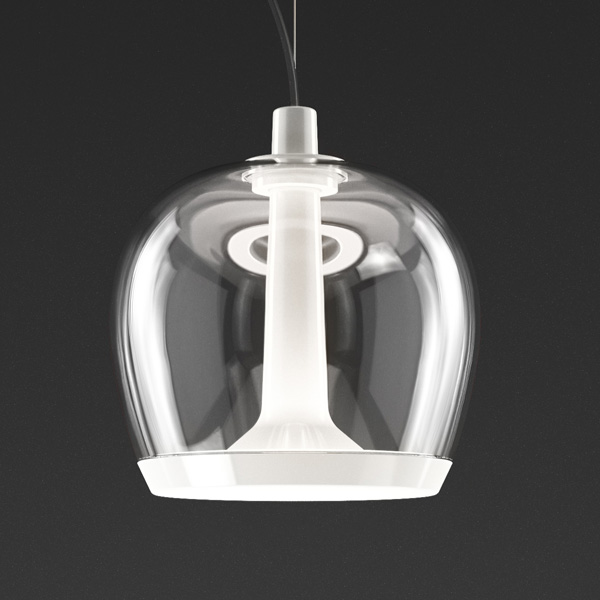

Diffuser: Transparent
Structure: Glossy warm white

Code Source Dimmer Watt Lm (nominal)
0011495 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011507 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012056 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012062 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

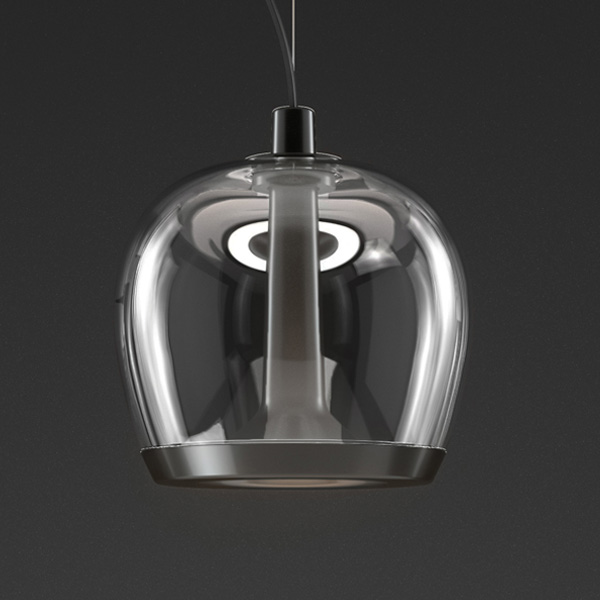

Diffuser: Smoke grey
Structure: Matte gunmetal

Code Source Dimmer Watt Lm (nominal)
0011499 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011511 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012058 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012064 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

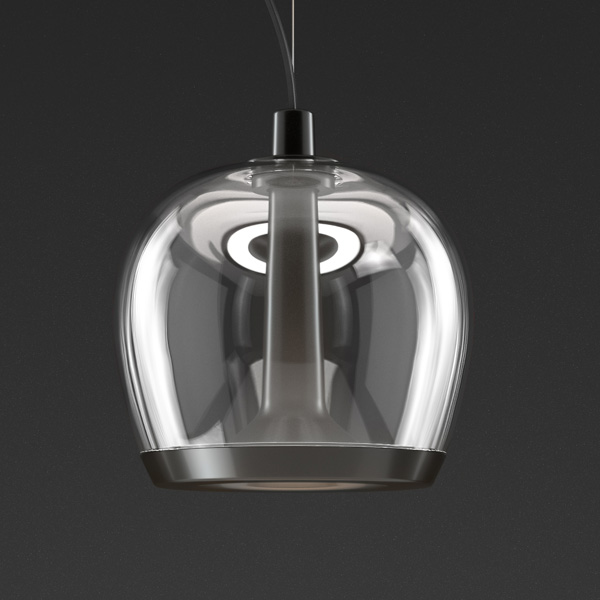

Diffuser: Transparent
Structure: Matte gunmetal

Code Source Dimmer Watt Lm (nominal)
0011493 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011505 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012055 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012061 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

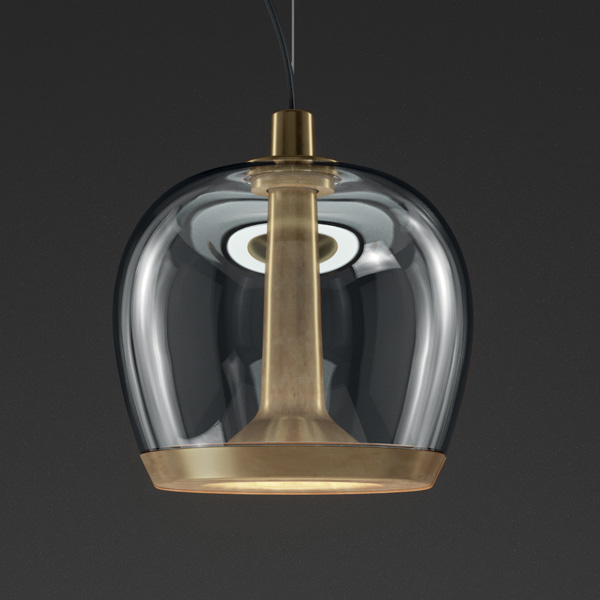

Diffuser: Smoke grey
Structure: Vintage brass

Code Source Dimmer Watt Lm (nominal)
0011497 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011509 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012057 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012063 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

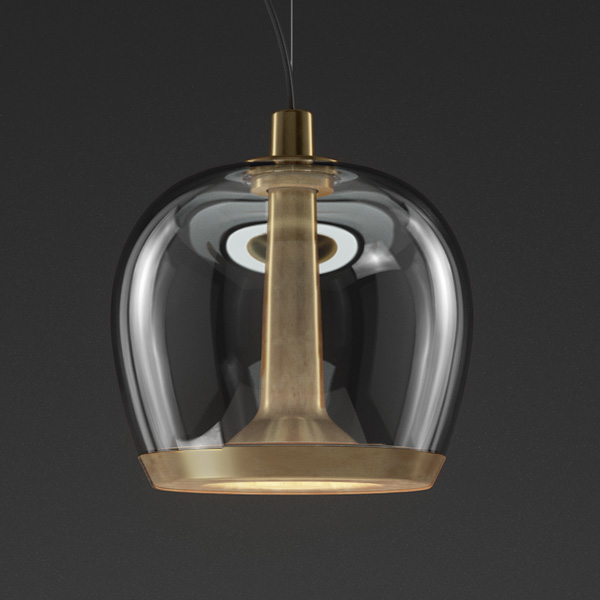

Diffuser: Transparent
Structure: Vintage brass

Code Source Dimmer Watt Lm (nominal)
0011491 LED 3000K Push-dim; 0/1 – 10V 11,6 + 7,2 1531 + 784
0011503 LED 2700K Push-dim; 0/1 – 10V 11,6 + 7,2 1471 + 768
0012054 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
0012060 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

Discover the collection AURELIA
