    AURELIA S22 BOLD
    Home
    /
    Catalogo
    /
    AURELIA S22 BOLD

    You have been located in , do you want to continue or do you want to change country?

    x

    Pendant
    AURELIA S22 BOLD

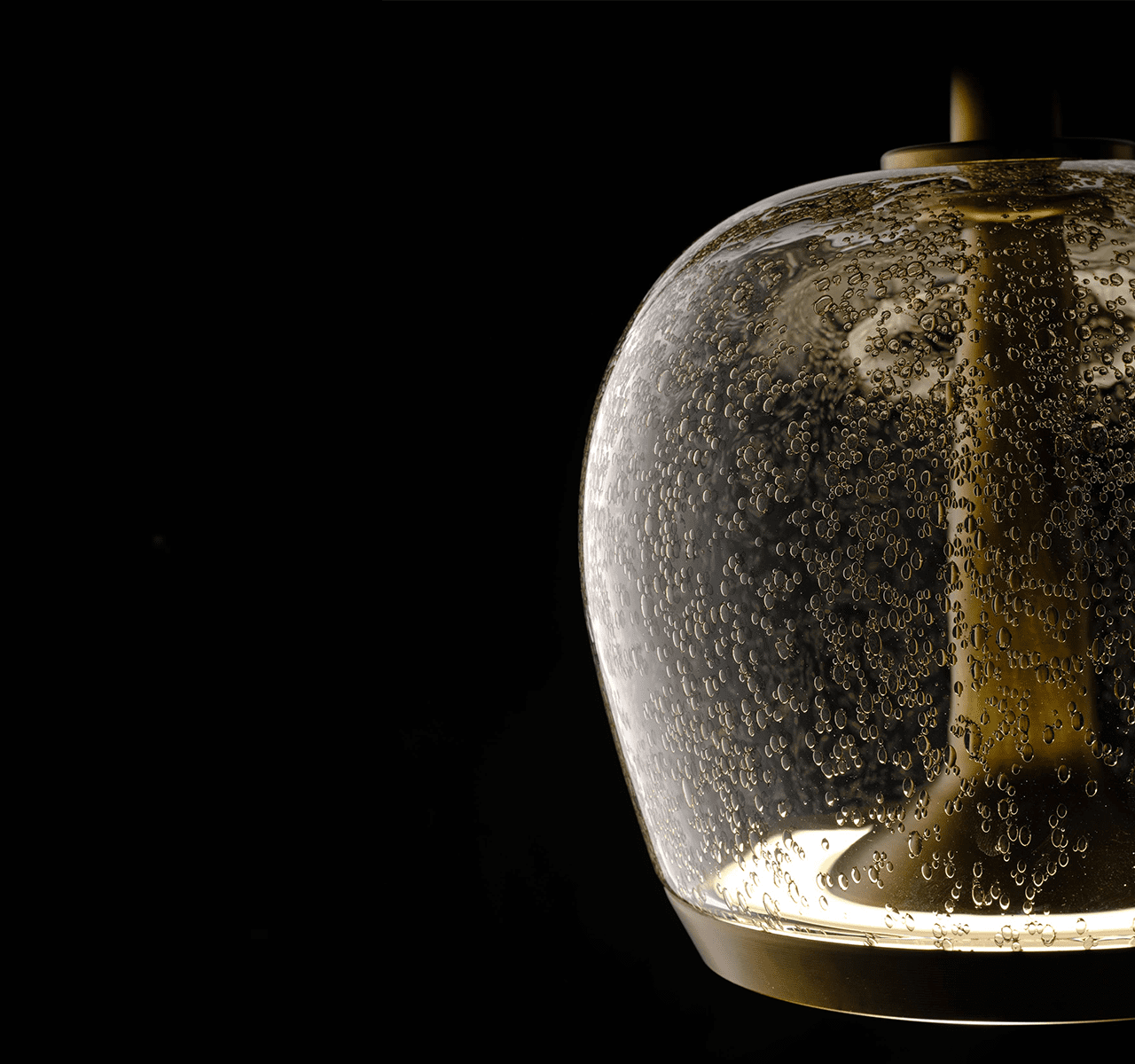

    Aurelia is a collection of suspension lamps designed by Patrick Jouin. The handblown glass diffuser surrounds the metal structure that houses two direct and indirect LED light sources. Independently dimmable, the two light sources offer the possibility of single or simultaneous switching, creating direct soft light and surprising and unexpected indirect reflections. Aurelia is available in two different shapes and sizes (Aurelia S 45 and Aurelia Bold S 22) and six combinations of glass colors (transparent or smoke gray) and metal structure (hand-finished vintage brass or matt gunmetal, and glossy warm white) with matching canopy. The LED light source can be easily replaced by the user. A smart disassembly system allows for an easy maintenance and cleaning of the glass diffuser.

    Technical information
    Watch the Youtube video

    2 Photos
    Gallery

    Designer
    PATRICK JOUIN

    Patrick Jouin is a designer whose creativity finds an expression in industrial design for the decorative arts. Jouin's career and his design agency, were consecrated by a monographic exhibition at Centre Pompidou in 2009. They were also honored with the Compasso d'Oro in 2011 for PastaPot. Many of his creations are in the permanent collections of museums worldwide, including the "Solid" collection at MOMA, which in 2004 was the first series of real-size furniture made by 3D printing technology. Patrick Jouin is also involved in interior design projects with his partner Sanjit Manku, within the agency Jouin Manku founded in 2006.

    Leucos - Aurelia S 22 Bold (User  Replaceable Led)

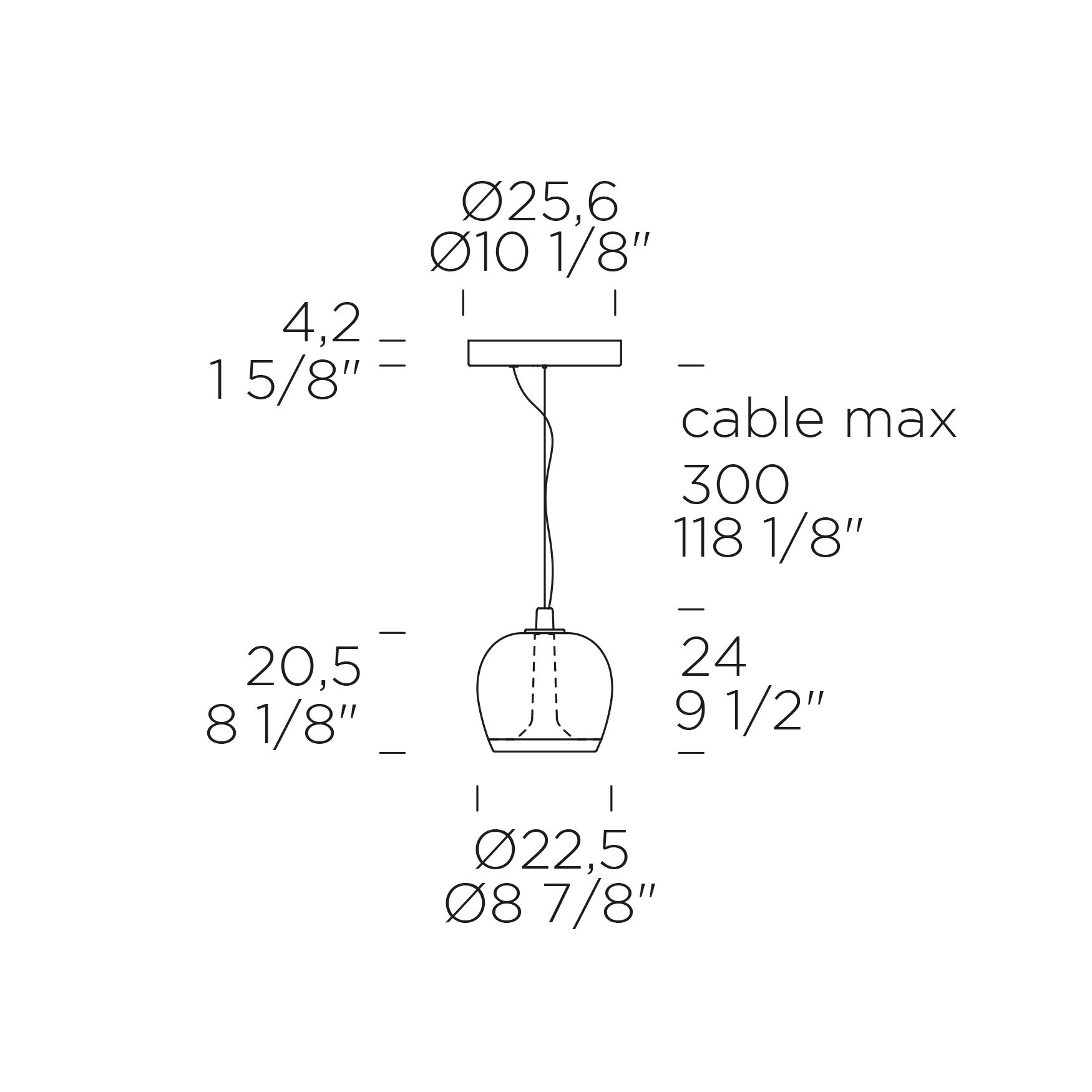

    Technical information

    Category: Indoor

    Light source: LED 3000K, LED 2700K

    Direct: LED 1 x 11,6W 1531lm (nominal) 3000K CRI≥90 [E]
    Indirect: LED 1 x 7,2W 784lm (nominal) 3000K CRI≥90 [F]

    Direct: LED 1 x 11,6W 1471lm (nominal) 2700K CRI≥90 [E]
    Indirect: LED 1 x 7,2W 768lm (nominal) 2700K CRI≥90 [F]

    Dimmer: Push-dim; 0/10V, Phase-cut

    Materials: glass, metal

    Weight – volume: 5,6 kg – 0,06 m3

    Marks: – –

    Note: User Replaceable LED

    Download

    Technical information
    Installation manual
    3D
    IES files

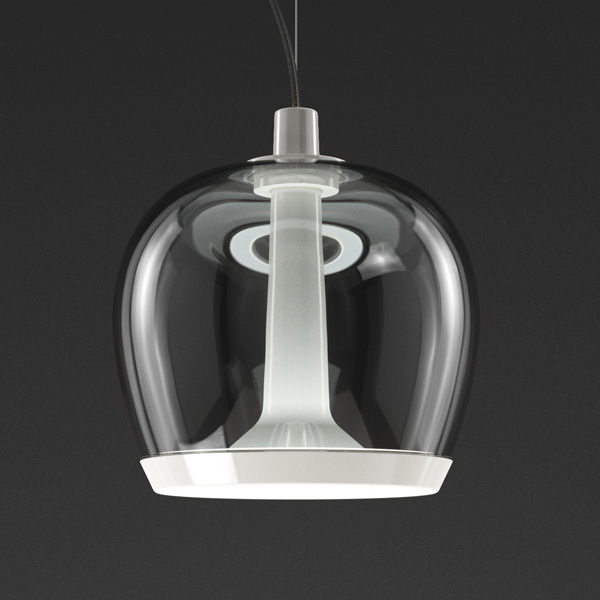

    Diffuser: Smoke grey
    Structure: Matt white

    Code Source Dimmer Watt Lm (nominal)
    0012813 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012814 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012843 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012844 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

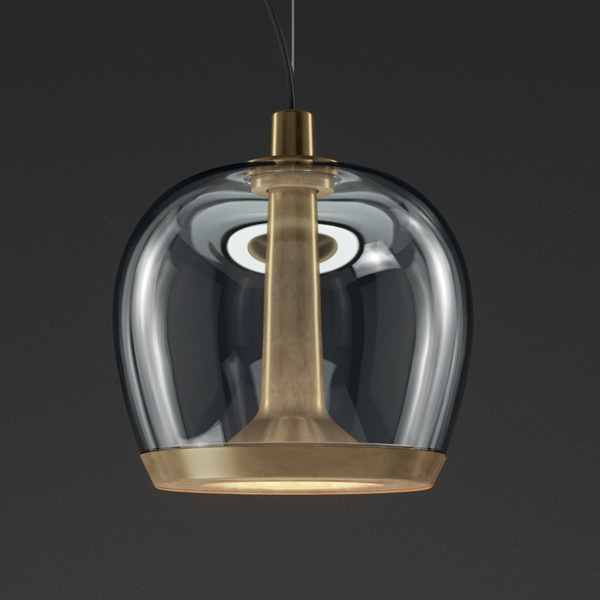

    Diffuser: Smoke grey
    Structure: Vintage brass

    Code Source Dimmer Watt Lm (nominal)
    0012815 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012816 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012845 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012846 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

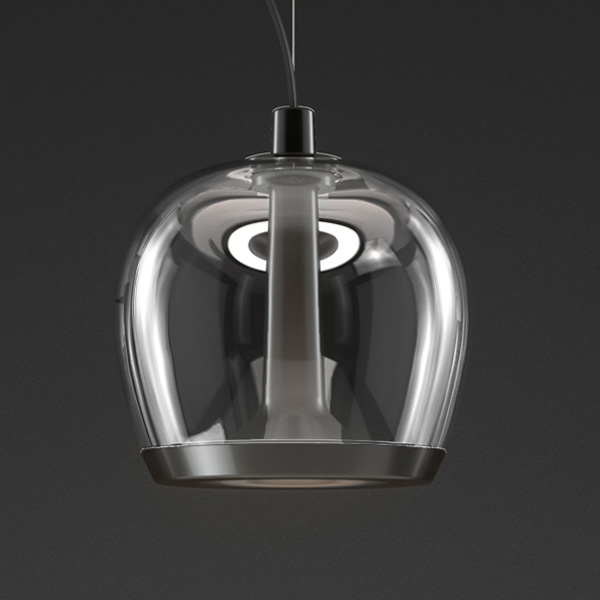

    Diffuser: Smoke grey
    Structure: Matt gunmetal

    Code Source Dimmer Watt Lm (nominal)
    0012817 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012818 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012847 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012848 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768
    Diffuser: Shaded bugundy
    Structure: Matt white

    Code Source Dimmer Watt Lm (nominal)
    0012819 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012820 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012849 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012850 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Diffuser: Shaded bugundy
    Structure: Vintage brass

    Code Source Dimmer Watt Lm (nominal)
    0012821 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012822 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012851 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012852 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Diffuser: Shaded bugundy
    Structure: Matt gunmetal

    Code Source Dimmer Watt Lm (nominal)
    0012823 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012824 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012853 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012854 LED 2700K Phase-cut 11,6 +7,2  1471 + 768

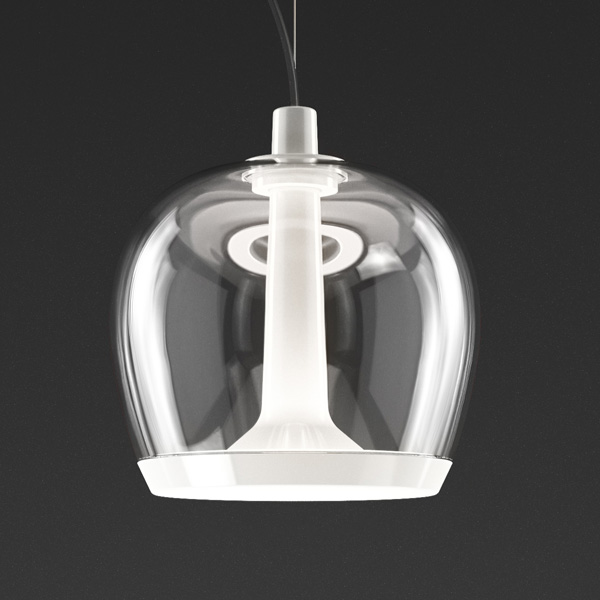

    Diffuser: Transparent
    Structure: Matt white

    Code Source Dimmer Watt Lm (nominal)
    0012825 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012826 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012855 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012856 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

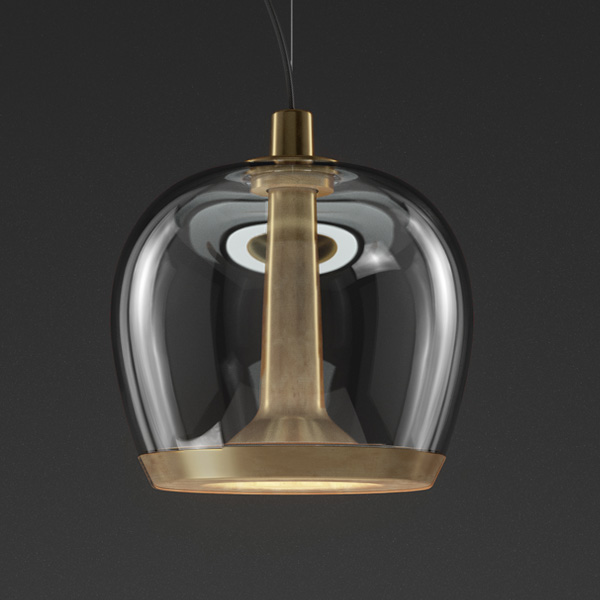

    Diffuser: Transparent
    Structure: Vintage brass

    Code Source Dimmer Watt Lm (nominal)
    0012827 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012828 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012857 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012858 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768

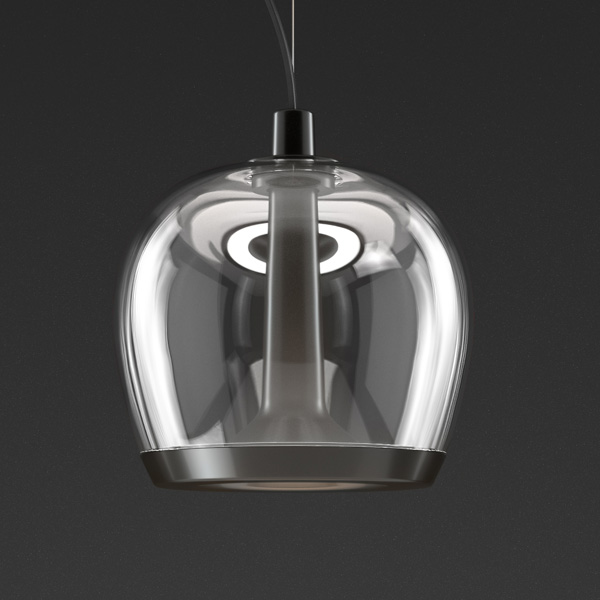

    Diffuser: Transparent
    Structure: Matt gunmetal

    Code Source Dimmer Watt Lm (nominal)
    0012829 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012830 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1471 + 768
    0012859 LED 3000K Phase-cut 11,6 + 7,2 1531 + 784
    0012860 LED 2700K Phase-cut 11,6 + 7,2 1471 + 768
    Diffuser: Blue water effect
    Structure: Matt white

    Code Source Dimmer Watt Lm (nominal)
    0012831 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012832 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012861 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012862 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Diffuser: Blue water effect
    Structure: Vintage brass

    Code Source Dimmer Watt Lm (nominal)
    0012833 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012834 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012863 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012864 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Diffuser: Blue water effect
    Structure: Matt gunmetal

    Code Source Dimmer Watt Lm (nominal)
    0012835 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012836 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    001265 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    001266 LED 2700K Phase-cut 11,6 +7,2  1471 + 768

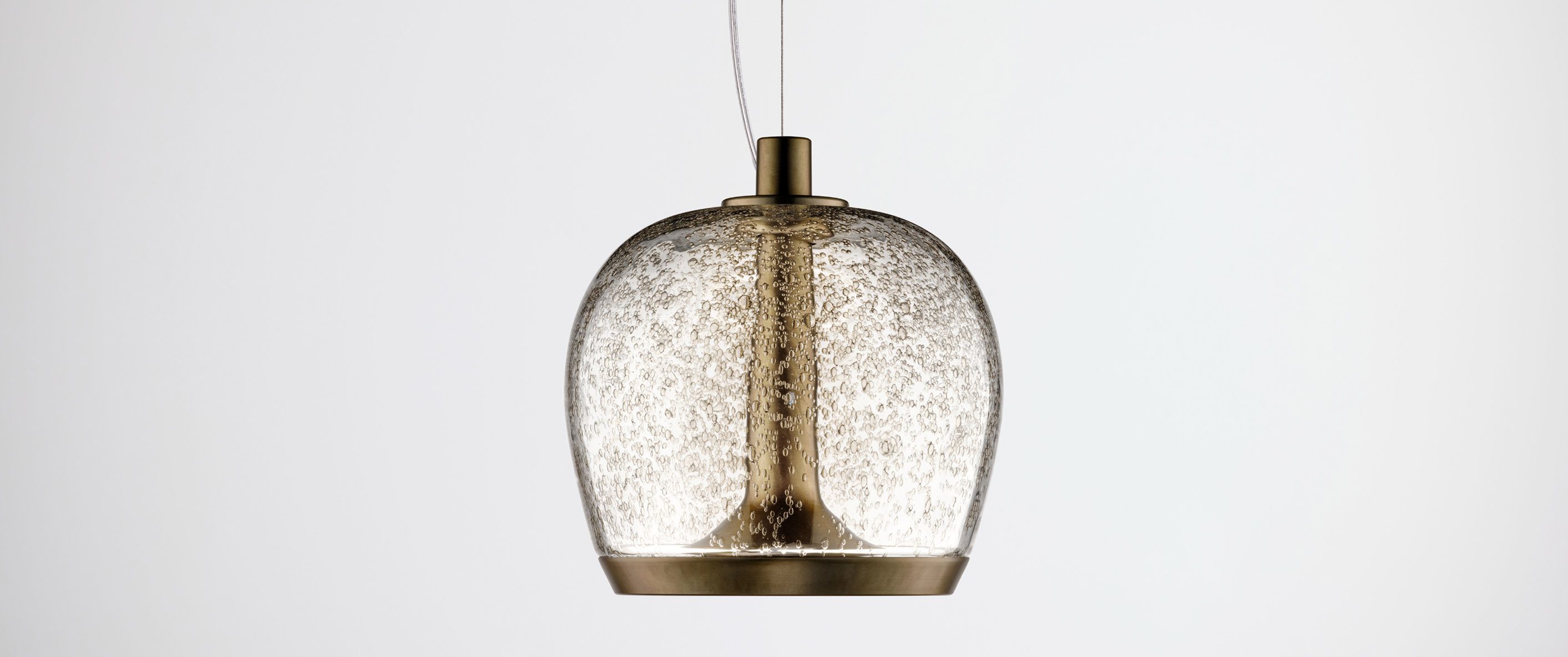

    Diffuser: Transparent pulegoso with metal powder inclusion
    Structure: Matte white

    Code Source Dimmer Watt Lm (nominal)
    0012837 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012838 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012867 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012868 LED 2700K Phase-cut 11,6 +7,2  1471 + 768

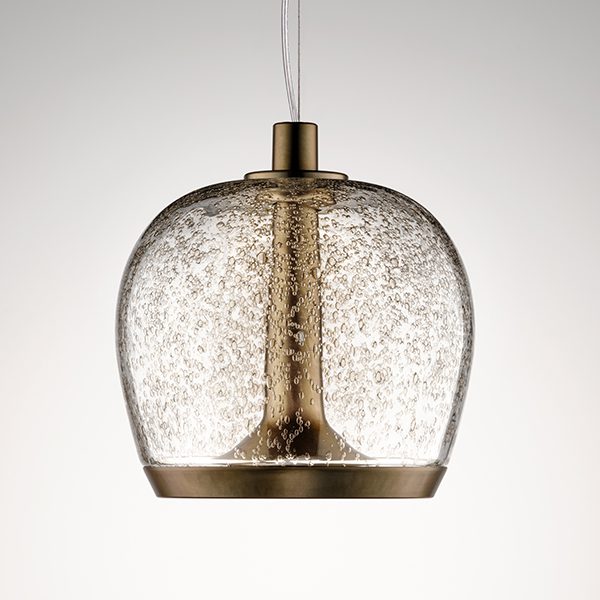

    Diffuser: Transparent pulegoso whit metal powder inclusion
    Structure: Vintage brass

    Code Source Dimmer Watt Lm (nominal)
    0012839 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012840 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012869 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012870 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Diffuser: Transparent pulegoso with metal powder inclusion
    Structure: Matt gunmetal

    Code Source Dimmer Watt Lm (nominal)
    0012841 LED 3000K Push-dim; 0/1 – 10V;DALI 11,6 + 7,2 1531 + 784
    0012842 LED 2700K Push-dim; 0/1 – 10V;DALI 11,6 +7,2  1471 + 768
    0012871 LED 3000K Phase-cut 11,6 +7,2 1531 + 784
    0012872 LED 2700K Phase-cut 11,6 +7,2  1471 + 768
    Request info
    Search stores
    Catalog downloads

    Discover the collection Aurelia

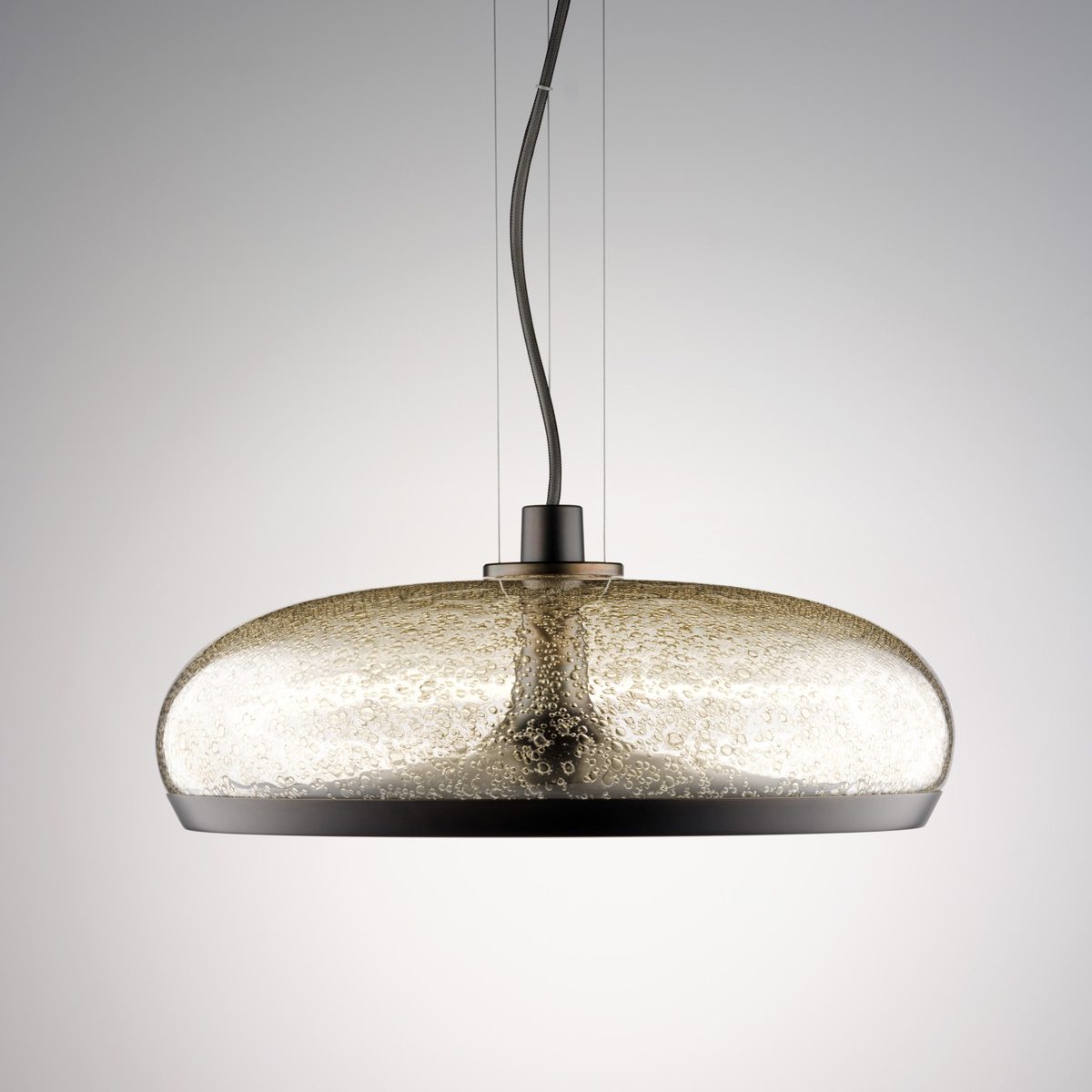

    AURELIA S45 SS (SINGLE SWITCH)
