AURELIA S45
Pendant
AURELIA S45

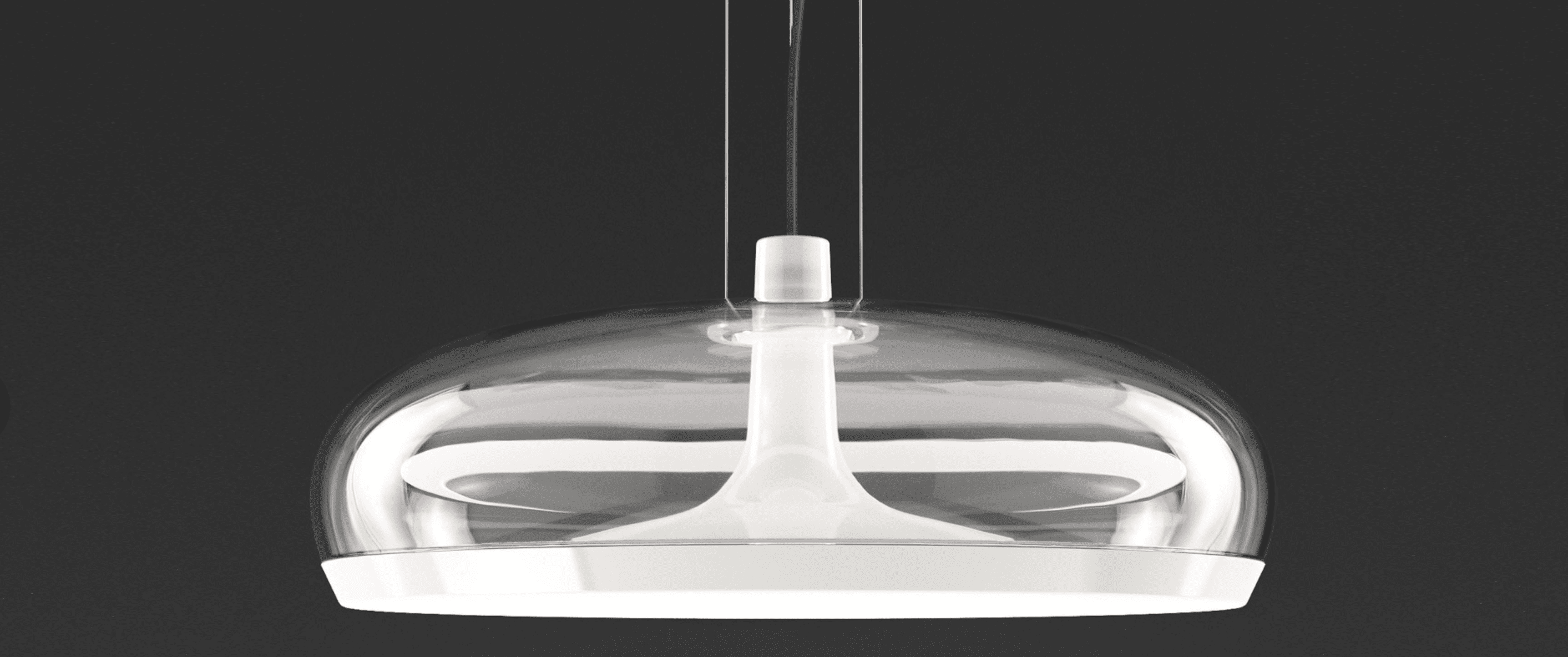

Aurelia is a collection of suspension lamps designed by Patrick Jouin. The handblown glass diffuser surrounds the metal structure that houses two direct and indirect LED light sources. Independently dimmable, the two light sources offer the possibility of single or simultaneous switching, creating direct soft light and surprising and unexpected indirect reflections. Aurelia is available in two different shapes and sizes (Aurelia S 45 and Aurelia Bold S 22) and six combinations of glass colors (transparent or smoke gray) and metal structure (hand-finished vintage brass or matt gunmetal, and glossy warm white) with matching canopy. The LED light source can be easily replaced by the user. A smart disassembly system allows for an easy maintenance and cleaning of the glass diffuser.
Technical information
Watch the Youtube video
3 Photos
Gallery
Designer
PATRICK JOUIN
It’s no fluke that Patrick Jouin was born on June 5, 1967 in Nantes, a city with the motto, “May Neptune favour those who sail.” After graduating from the École Nationale de la Création Industrielle (ENSCI) in 1992, the designer founded his own agency in 1998 in the 11th arrondissement in Paris. Since then it has grown into a reference on the international stage. Patrick Jouin stands out through his refined and sometimes bold designs, mentally joining the mortises and tenons of his productions as elegantly and skilfully as he organises their material layout.Patrick Jouin’s designs have never been about making a statement: they are not allegorical and do not herald a new era embodied in objects or a space.
Leucos - Aurelia S 45 (User Replaceable Led)
Technical information
Category: Indoor
Light source: LED 3000K, LED 2700K
Direct: LED 1 x 11,6 W 1531lm (nominal) 3000K CRI≥90
Indirect: LED 1 x 18 W 1960lm (nominal) 3000K CRI≥90
Direct: LED 1 x 11,6 W 1471lm (nominal) 2700K CRI≥90
Indirect: LED 1 x 18 W 1700lm (nominal) 2700K CRI≥90
Dimmer: Push-dim 0/1 – 10 V – Phase-cut
Materials: glass, metal
Weight – volume: 10,2 kg – 0,180 m3
Marks:
–
–
Note: User Replaceable LED
Diffuser: Smoke grey
Structure: Glossy warm white
Structure: Glossy warm white
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012753 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0012754 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012783 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012784 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |

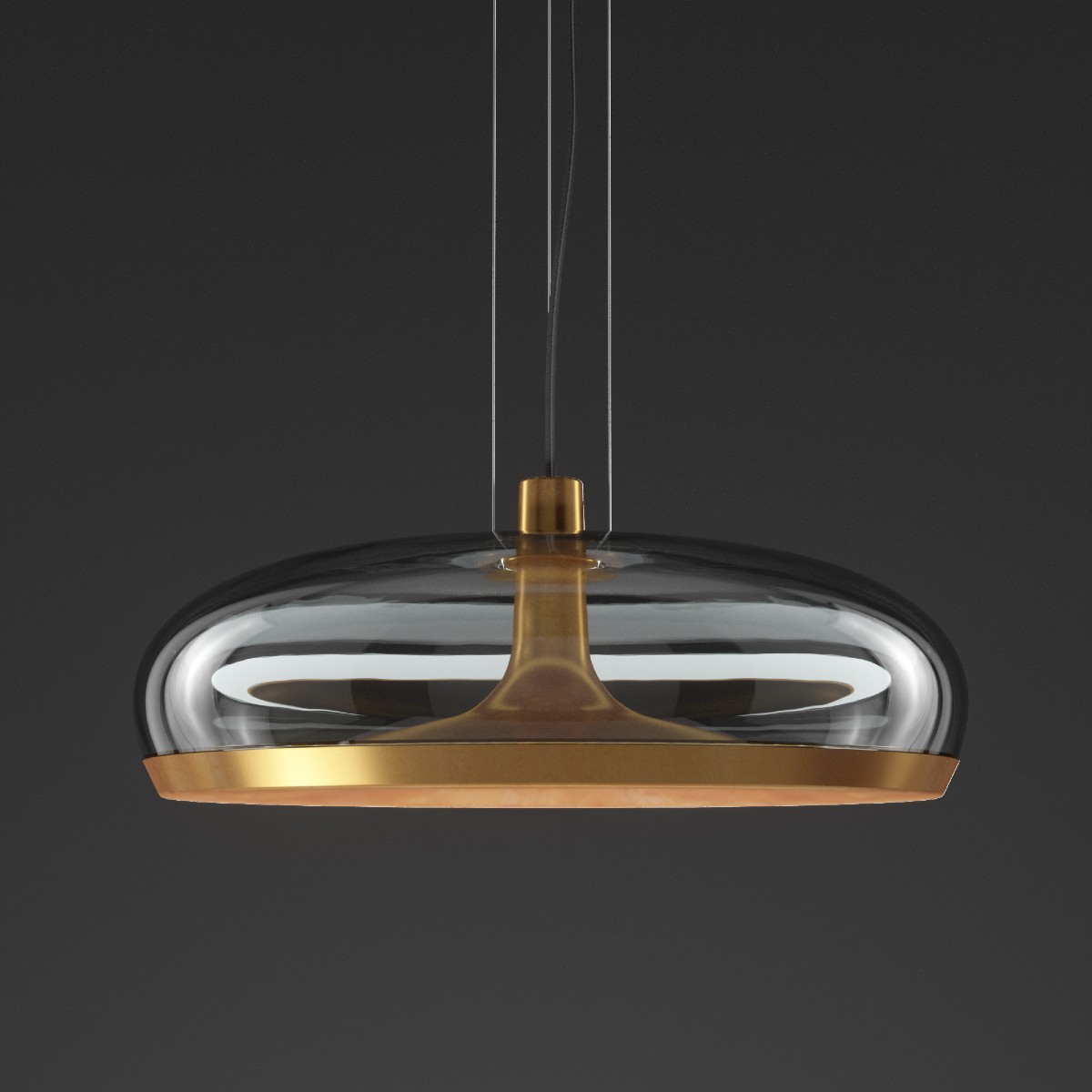

Diffuser: Smoke grey
Structure: Vintage brass
Structure: Vintage brass
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012755 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0012756 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012785 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012786 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |

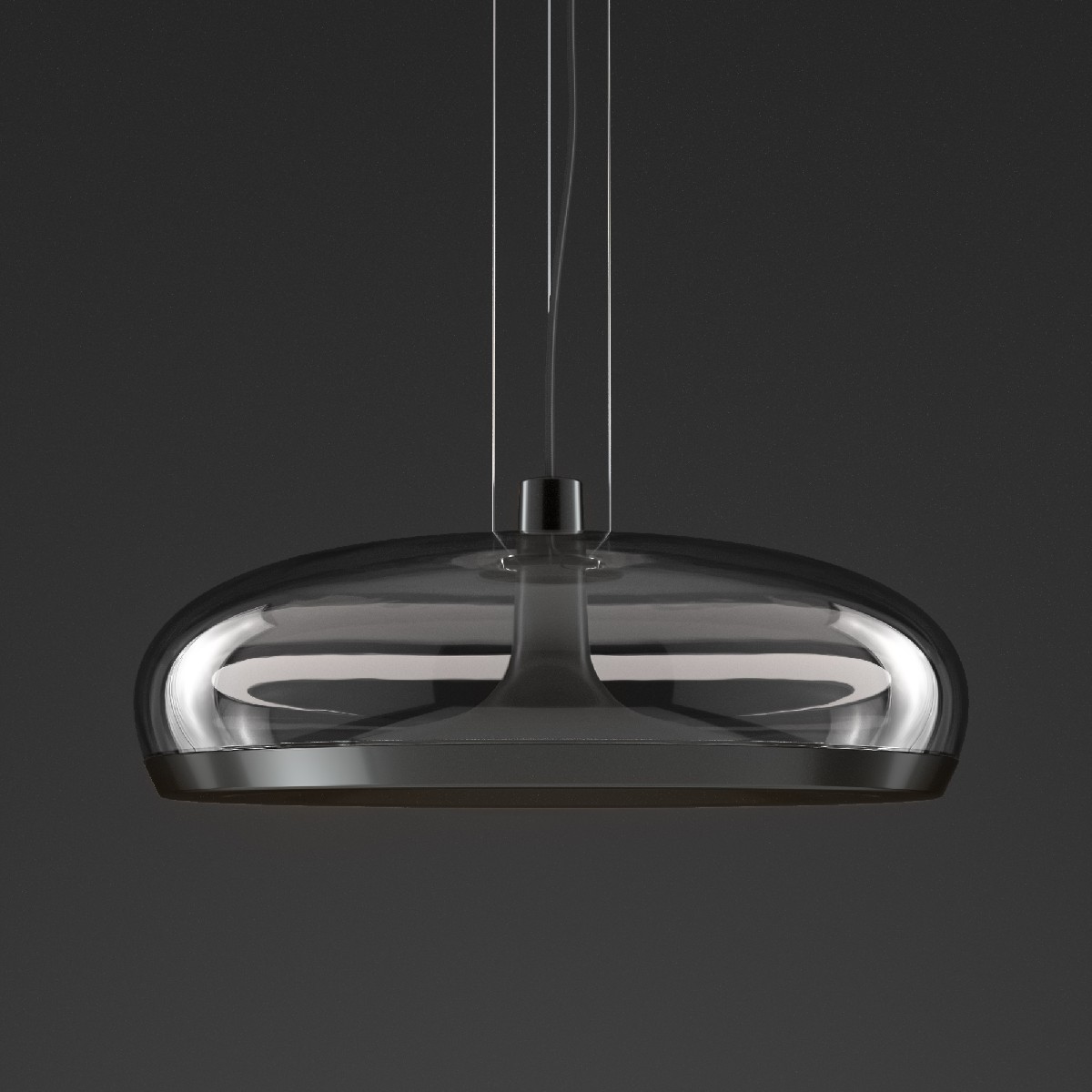

Diffuser: Smoke grey
Structure: Matte gunmetal
Structure: Matte gunmetal
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012757 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0012758 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012787 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012788 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |
Diffuser: Shaded burgundy
Structure: Matt white
Structure: Matt white
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012759 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 + 18 | 1531 + 1960 |
| 0012760 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012789 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012790 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Shaded burgundy
Structure: Vintage brass
Structure: Vintage brass
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012761 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012762 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012791 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012792 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Shaded burgundy
Structure: Matte gunmetal
Structure: Matte gunmetal
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012763 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012764 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012793 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012794 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |

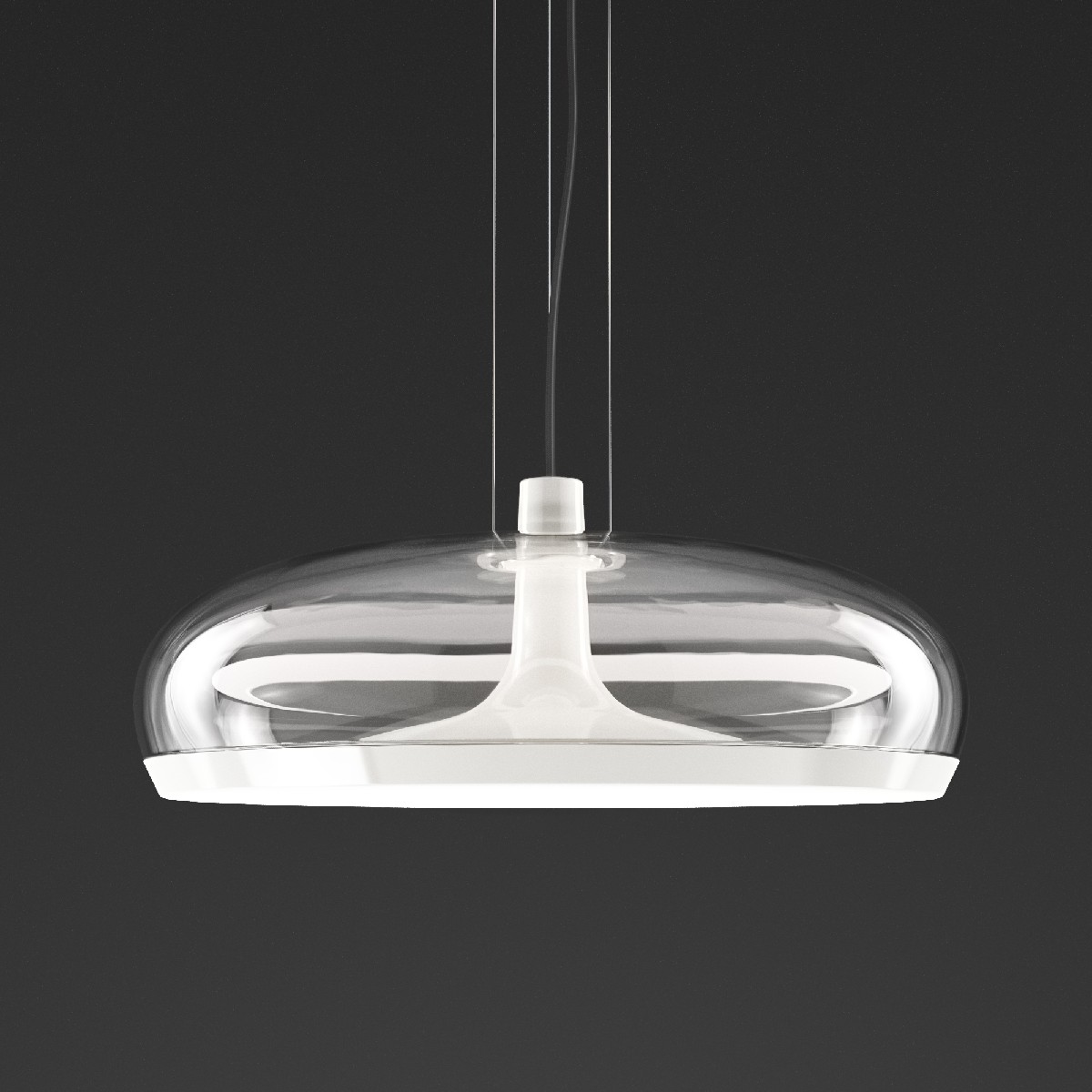

Diffuser: Transparent water effect
Structure: Glossy warm white
Structure: Glossy warm white
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0011465 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0011466 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012795 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012796 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |

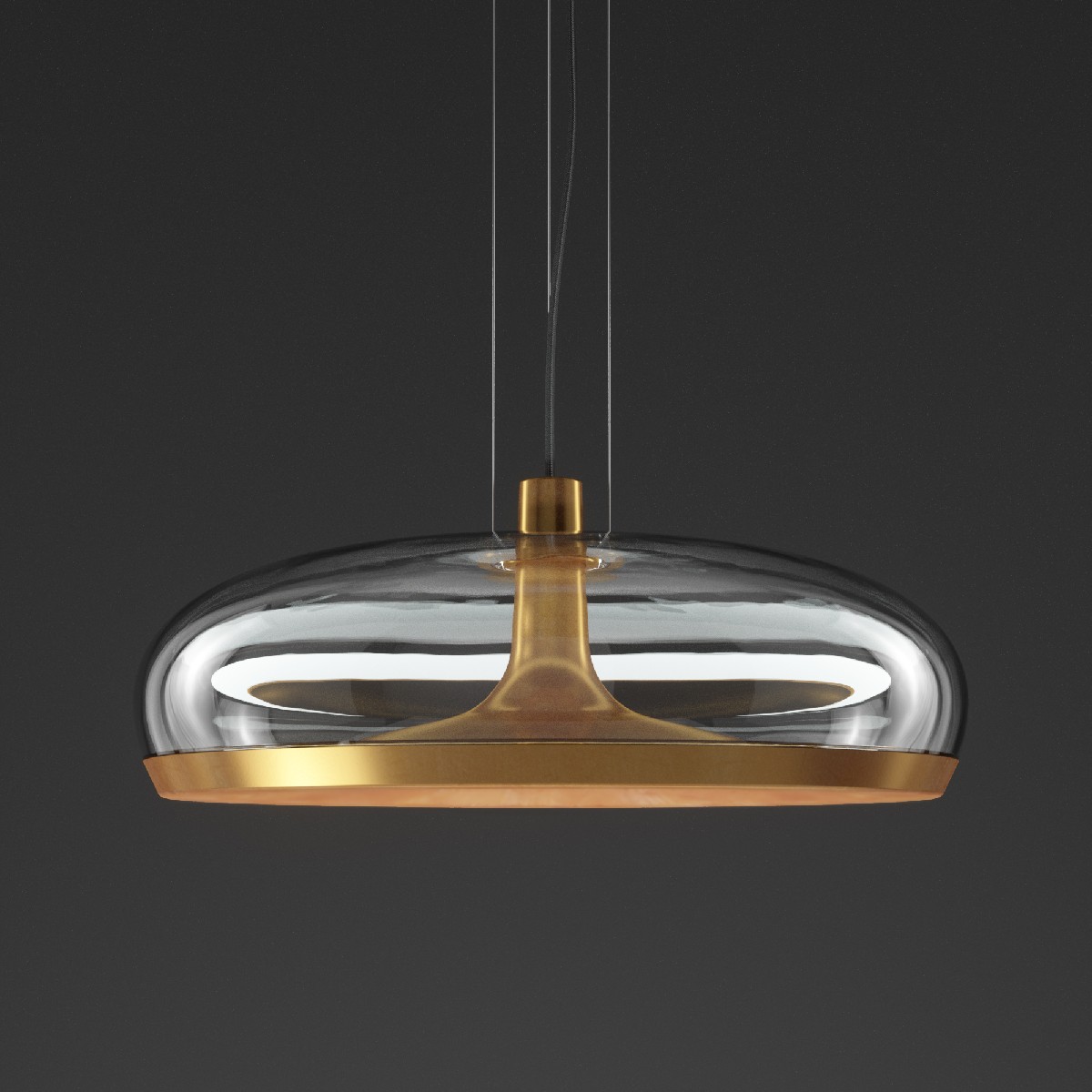

Diffuser: Transparent water effect
Structure: Vintage brass
Structure: Vintage brass
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012767 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0012768 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012797 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012798 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |

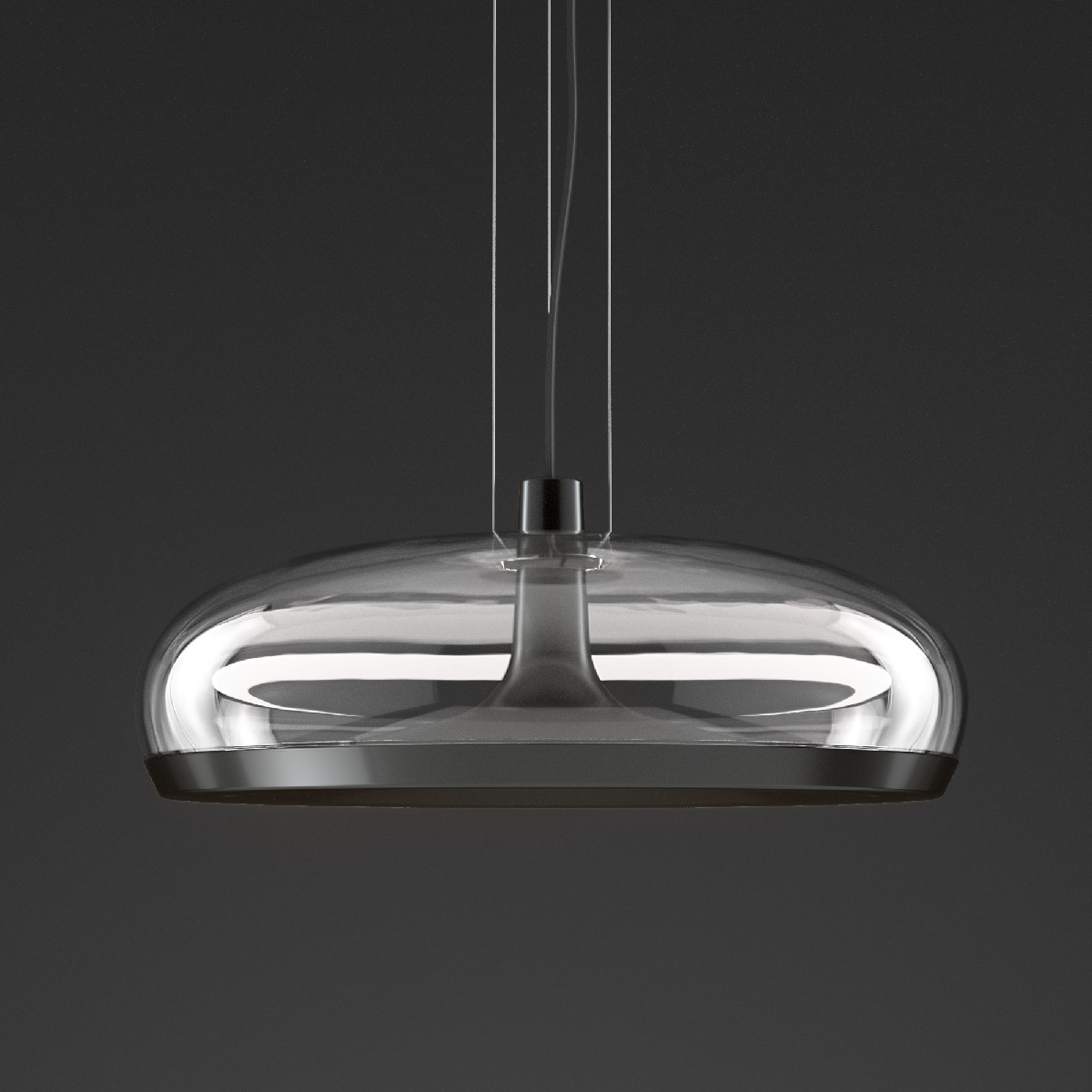

Diffuser: Transparent water effect
Structure: Matte gunmetal
Structure: Matte gunmetal
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012769 | LED 3000K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1531 + 1960 |
| 0012770 | LED 2700K | Push-dim; 0/1 – 10V | 11,6 + 18 | 1471 + 1700 |
| 0012799 | LED 3000K | Phase-cut | 11,6 + 18 | 1531 + 1960 |
| 0012800 | LED 2700K | Phase-cut | 11,6 + 18 | 1471 + 1700 |
Diffuser: Blue water effect
Structure: Matt white
Structure: Matt white
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012771 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012772 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012801 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012802 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Blue water effect
Structure: Vintage brass
Structure: Vintage brass
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012773 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012774 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012803 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012804 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Blue water effect
Structure: Matte gunmetal
Structure: Matte gunmetal
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012775 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012776 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012805 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012806 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Transparent pulegoso whith metal powder
Structure: Matte white
Structure: Matte white
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012777 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012778 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012807 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012808 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser Transparent pulegoso whith metal powder
Structure: Vintage brass
Structure: Vintage brass
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012779 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012780 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012809 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012810 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
Diffuser: Transparent pulegoso whith metal powder
Structure: Matte gunmetal
Structure: Matte gunmetal
| Code | Source | Dimmer | Watt | Lm (nominal) |
| 0012781 | LED 3000K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1531 + 1960 |
| 0012782 | LED 2700K | Push-dim; 0/1 – 10V;DALI | 11,6 +18 | 1471 + 1700 |
| 0012811 | LED 3000K | Phase-cut; | 11,6 +18 | 1531 + 1960 |
| 0012812 | LED 2700K | Phase-cut; | 11,6 +18 | 1471 + 1700 |
